By HiTech Power Solutions – Specialists in RV Electrical & Electronic Components

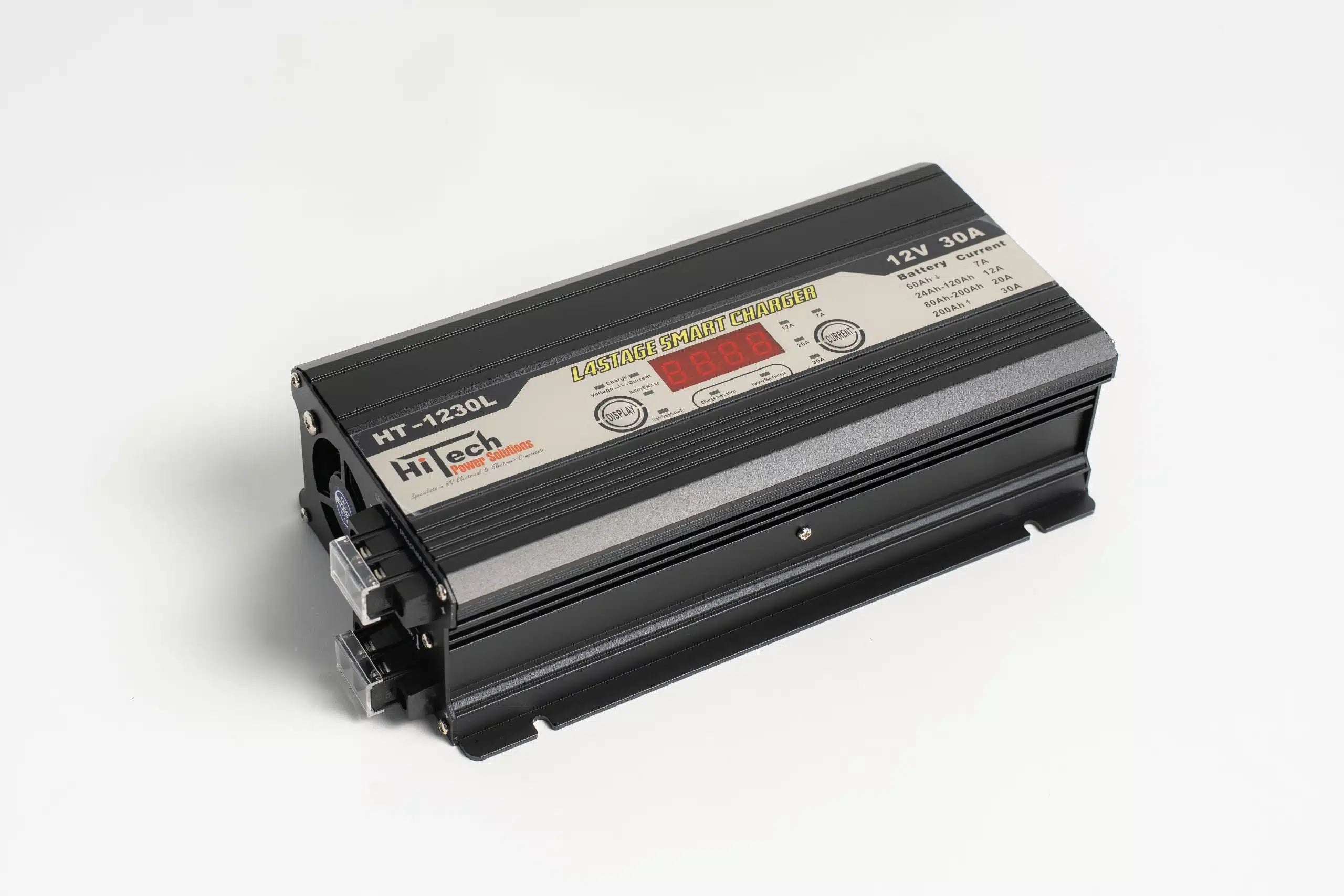

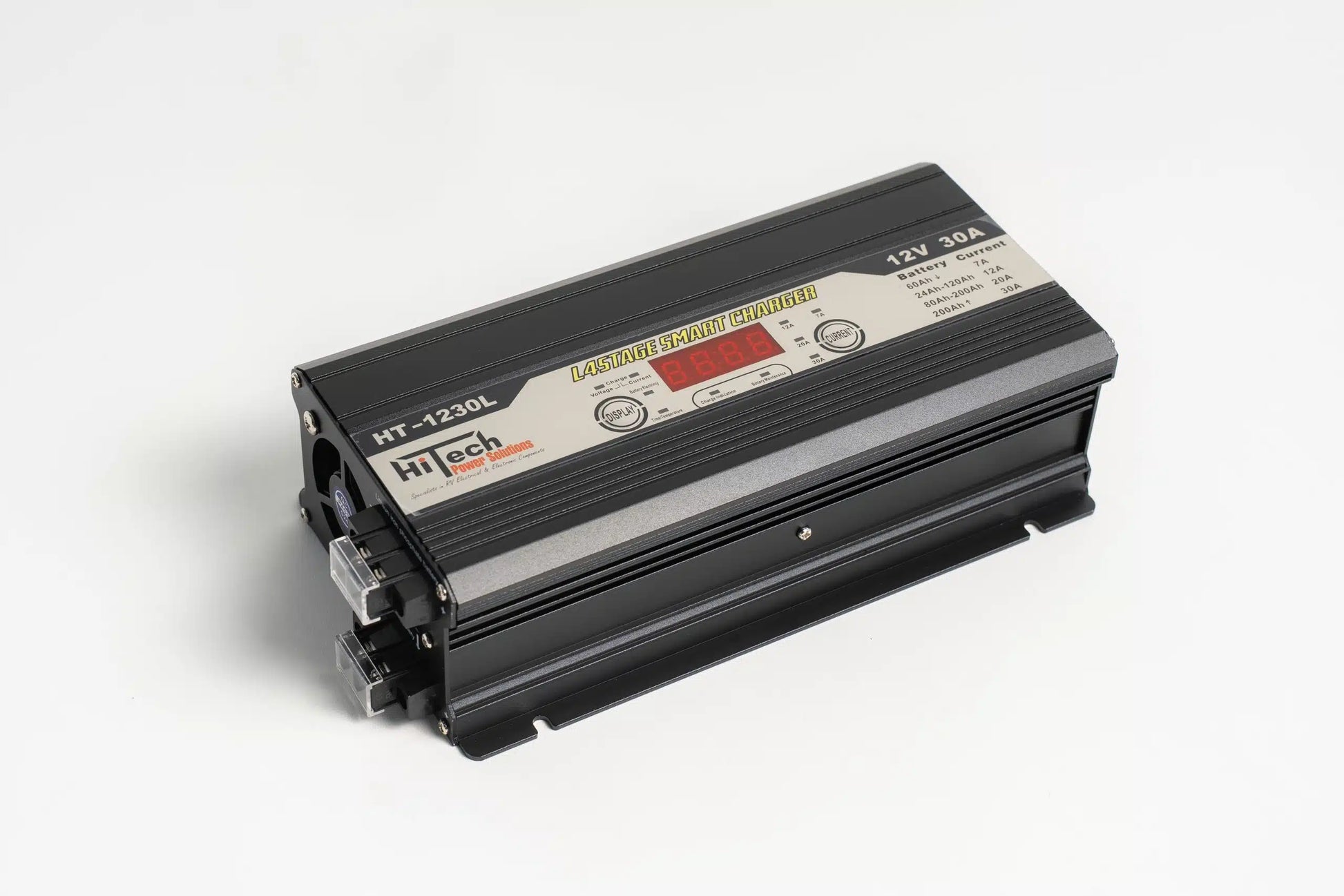

Take complete control of your battery charging needs with theHT-1230L Smart Battery Charger, engineered for bothLithium Iron Phosphate (LiFePO₄)andLead Acid/AGM batteries. Whether installed in yourRV, caravan, 4WD, boat, or off-grid setup, this charger delivers intelligent, efficient, and safe charging performance—anywhere you need it.
✅ Key Features:
Smart Charging: Four-stage PWM charging system with automatic voltage stabilization and current-limit functions.
Multi-Amp Selection: Manually select between 7A, 12A, 20A, and 30A to suit various battery sizes.
Digital Display Panel: Shows charging voltage, current, battery level (%), time, temperature, and error codes.
Battery Compatibility: Works with Lithium Iron Phosphate and Lead Acid batteries (12V only).
Temperature Sensor: Monitors internal temperature for safe operation.
Auto Repair Function: Helps recover battery performance through controlled charging cycles.
Protection Features: Built-in reverse polarity, short circuit, over-temperature, over-voltage, and overcharging protection.
Quiet Fan Control: Fan activates only when charging current exceeds 5A.
⚠️ Important Usage Notes:
Battery Type Switch: Toggle switch must be set to either Lithium or Lead Acid mode—do not connect both types at once, even when the charger is off.
Ventilation: Ensure adequate airflow around the unit.
Dry & Safe Location: Keep away from corrosive, salty, or damp environments.
240V Input Check: Ensure the AC plug is securely connected, especially during RV travel.
